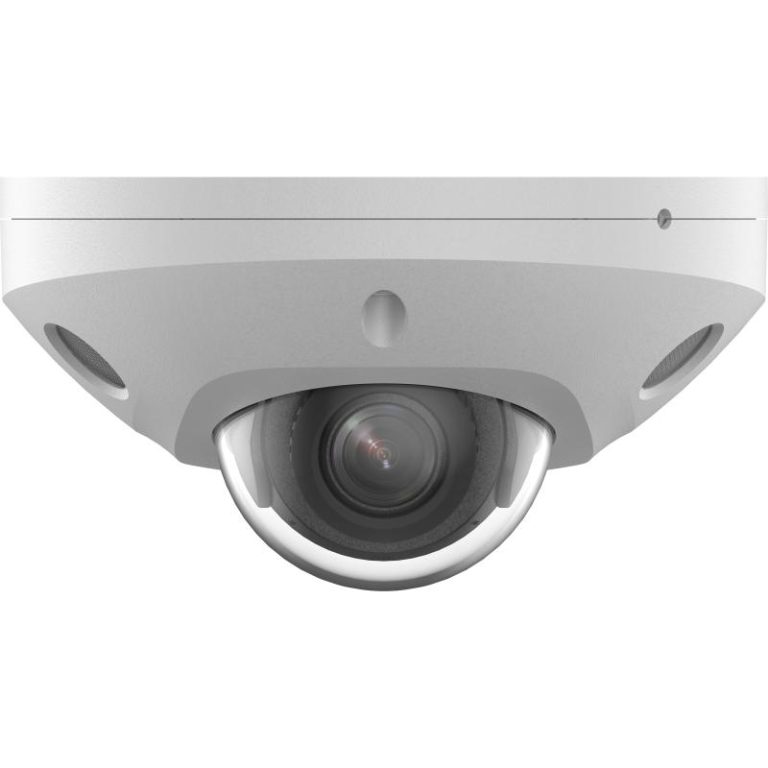

Hikvision DS-2CD2543G2-LIS2U 4MP Acusense Smart Hybrid Light Fixed Mini Dome Network Camera
Product Code
:
DS-2CD2543G2-LIS2U
Availability
:
In Stock
Bagikan :
Hikvision DS-2CD2543G2-LIS2U 4MP Acusense Smart Hybrid Light Fixed Mini Dome Network Camera
Deskripsi Produk
Spesifikasi Produk
Deskripsi Produk
DS-2CD2543G2-LIS2U
4MP Acusense Smart Hybrid Light Fixed Dome Network Camera
-
- Gambar Berkualitas Tinggi : Resolusi 4MP
- Teknologi Acusense : Mengklasifikasikan manusia dan kendaraan berbasis deep learning, Mengurangi alarm palsu akibat gerakan yang tidak relevan seperti hujan, hewan, atau dedaunan
- Iluminasi Cahaya Hybrid : Mengintegrasikan Cahaya Inframerah (IR) dan White Light, mendukung 4 Mode Pencahayaan tambahan : hanya IR, Hanya Lampu Putih, Mode Pintar (berpindah otomatis berdasarkan deteksi), Mati.
- -2 U : sudah dilengkapi dengan dual-microphone untuk keamanan audio berkualitas tinggi secara real time.
- Teknologi 120 dB true WDR, memberikan gambar jelas meski dalam kondisi cahaya back light yang kuat.
- Tahan Cuaca dan Vandalisme : IP67 (tahan air dan debu) & IK10 (tahan benturan dan vandalisme)
- Teknologi H.265+ menghemat penggunaan bandwidth dan penyimpanan tanpa mengurangi kualitas gambar
Spesifikasi Produk
Camera
Image Sensor
1/2.9″ Progressive Scan CMOS
Max. Resolution
2688 x 1520
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100.000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: -30° to 30°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type
Fixed Focal Lens
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°
Lens Mount
M12
Iris Type
Fixed
Depth of Field
1.4 m to ∞ : 2.8mm
Aperture
F1.6
Illuminator
Supplement Light Type
IR White Light
Supplement Light Range
Up to 30m
Smart Supplement Light
YES
IR Wavelength
850nm
Video
Main Stream
50 Hz: 25 fps ( 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Audio
Audio Compression
-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-2U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
YES
Interface
On Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset key
YES
Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Audio
Built-in Microphone: -2U: Arrayed dual-microphone -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
General
Material
Base: Aluminum, Cover: Plastic
Dimension
Ø110 mm × 59.2 mm (Ø4.33″ × 2.33″)
Package DImension
150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight
Approx. 390g
With Package Weight
Approx. 606g
