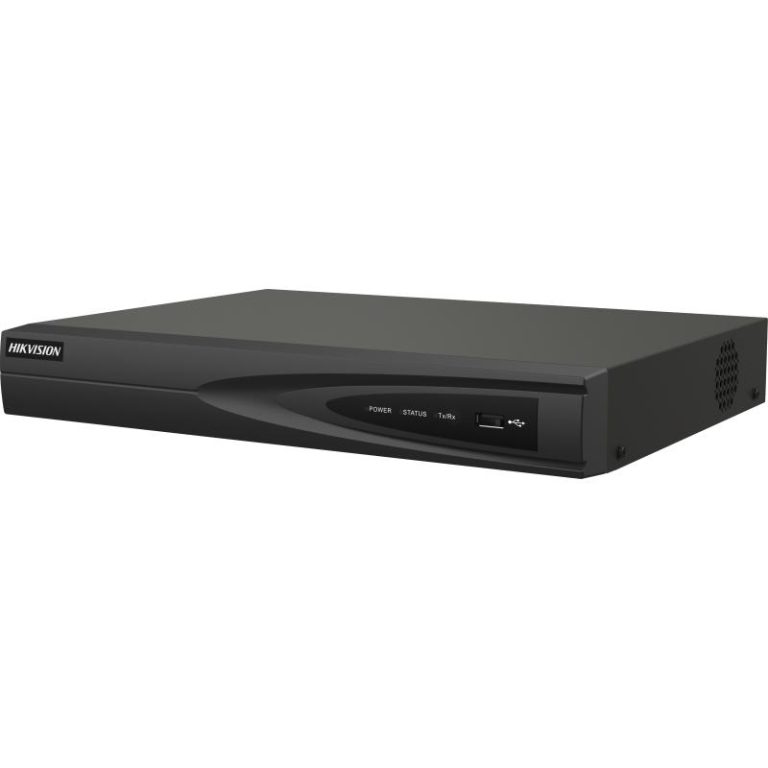

Hikvision DS-7604NI-Q1 4-ch 1U 4K NVR
Product Code
:
DS-7604NI-Q1
Availability
:
In Stock
Bagikan :
Deskripsi Produk
Spesifikasi Produk
Deskripsi Produk
DS-7604NI-Q1
4-ch NVR Network Video Recorder
- Input Kamera IP : Mendukung hingga 4 channel
- Format Video : H.265+, H.265, H.264+, H.264
- Kapasitas Decoder : Up to 1-ch @8 MP , 3-ch @4 MP, 6-ch @1080p
- Incoming Bandwidth : Up to 40 Mbps
Spesifikasi Produk
Motion Detection 2.0
Human/Vehicle Analysis
1-ch;4-ch
IP Video Input
4-ch
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80 Mbps
Video Output Mode
HDMI/VGA simultaneous input
Audio Output
1-ch, RCA (Linear)
Two-way Audio
1-ch, RCA
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Decoding Capability
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Auxiliary Interface
SATA
1 SATA Interface
Capacity
Up to 8 TB Capacity for each disk
USB Interface
2 x USB 2.0
General
Power Supply
12 VDC, 1.5A
Consumption
≤ 10 W (without HDD)
Dimension (WxDxH)
320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
Weight
≤ 1 kg (without HDD, 2.2 lb.)
