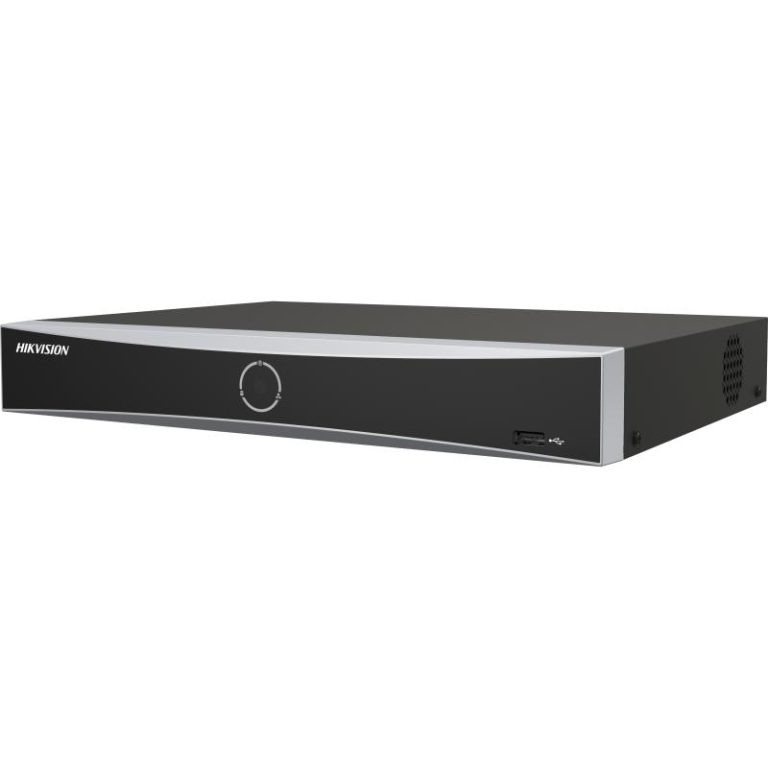

Hikvision DS-7604NXI-K1/4P(D) 4-ch PoE 1U K Series AcuSense 4K NVR
Product Code
:
DS-7604NXI-K1/4P(D)
Availability
:
In Stock
Bagikan :
Hikvision DS-7604NXI-K1/4P(D) 4-ch PoE 1U K Series AcuSense 4K NVR
Deskripsi Produk
Spesifikasi Produk
Deskripsi Produk
DS-7604NXI-K1/4P(D)
4-ch PoE NVR Network Video Recorder
- Input Kamera IP : Mendukung hingga 4 channel , dengan 4 power-over-ethernet (PoE), yang dapat langsung dikoneksikan secara langsung (plug and play)
- Format Video : H.265+, H.265, H.264+, H.264
- Kapasitas Decoder : Up to 2-ch @12MP or 4-ch @8MP or 8-ch @4MP or 16-ch @1080P decoding capacity
- Incoming Bandwidth : Up to 40 Mbps
Spesifikasi Produk
Intelligent Analytics
AI by Device
Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA
Facial Recognition
Facial Detection Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Motion Detection 2.0
by camera
all channels
Perimeter Protection
By Device
1-ch, 4MP video analysis for human and vehicle recognition to reduce false alarm
By Camera
All Channels
Video and Audio
IP Video Input
4-ch
Incoming Bandwidth
40 Mbps
Outgoing Bandwidth
80 Mbps
Video Output Mode
HDMI/VGA simultaneous input
Audio Output
1-ch, RCA (Linear)
Two-way Audio
1-ch, RCA
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability
AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 50 W
Auxiliary Interface
SATA
1 SATA Interface
Capacity
Up to 16 TB Capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm in/out
4/1; NA
General
Power Supply
48 VDC, 1.35 A
Consumption
≤ 10 W (without HDD)
Dimension (WxDxH)
320 mm × 240 mm × 48 mm (12.6″× 9.4″ × 1.9″)
Weight
≤ 1 kg (without HDD, 2.2 lb.)
