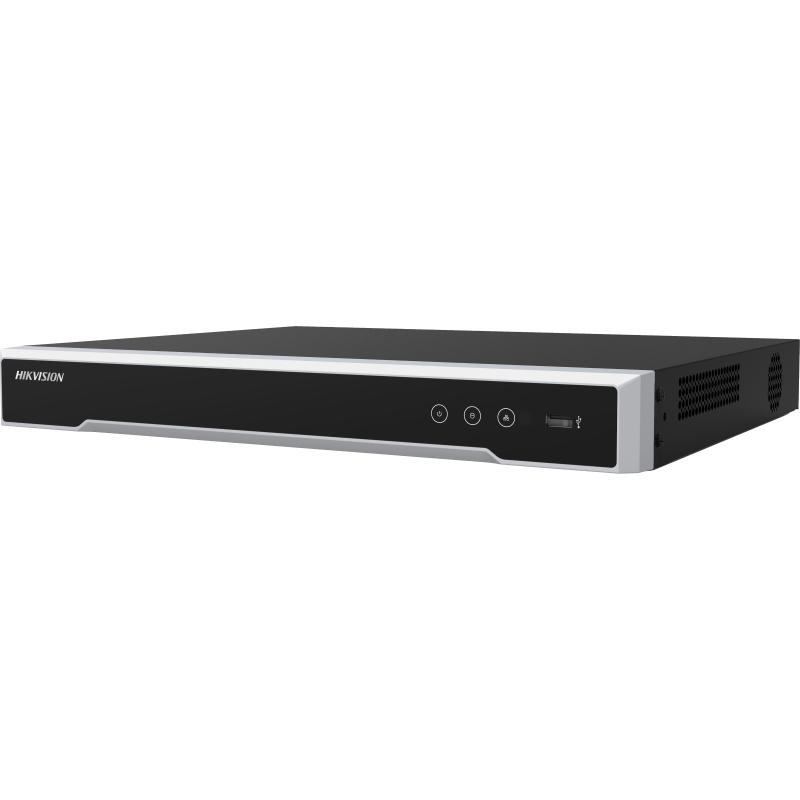

Hikvision DS-7616NI-M2 16-ch 1U 8K NVR
Product Code
:
DS-7616NI-M2
Availability
:
In Stock
Bagikan :
Deskripsi Produk
Spesifikasi Produk
Deskripsi Produk
DS-7616NI-M2
16-ch 8K NVR Network Video Recorder
- Input Kamera IP : Mendukung hingga 16 channel
- Format Video : H.265+, H.265, H.264+, H.264
- Kapasitas Decoder : Up to 16-ch @4MP decoding capacity
- Incoming Bandwidth : Up to 256 Mbps
- Mendukung koneksi hingga 8 saluran speaker IP untuk fleksibilitas dan jangkauan audio maksimal.
Spesifikasi Produk
Video and Audio
IP Video Input
16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32MP/24MP IP video inputs.
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
Video Output Mode
HDMI/VGA simultaneous input
CVBS Ouput
1-ch, BNC
Audio Output
1-ch, RCA (Linear)
Two-way Audio
1-ch, RCA, using the audio input
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Decoding Capability
2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
Auxiliary Interface
SATA
2 SATA Interface
Capacity
Up to 16 TB Capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
4/1
General
Power Supply
12 VDC, 3.33A
Consumption
≤ 15 W (without HDD)
Dimension (WxDxH)
385 mm × 315 mm × 52 mm (15.2″× 12.4″ × 2.0″)
Weight
≤ 3 kg (without HDD, 2.2 lb.)
