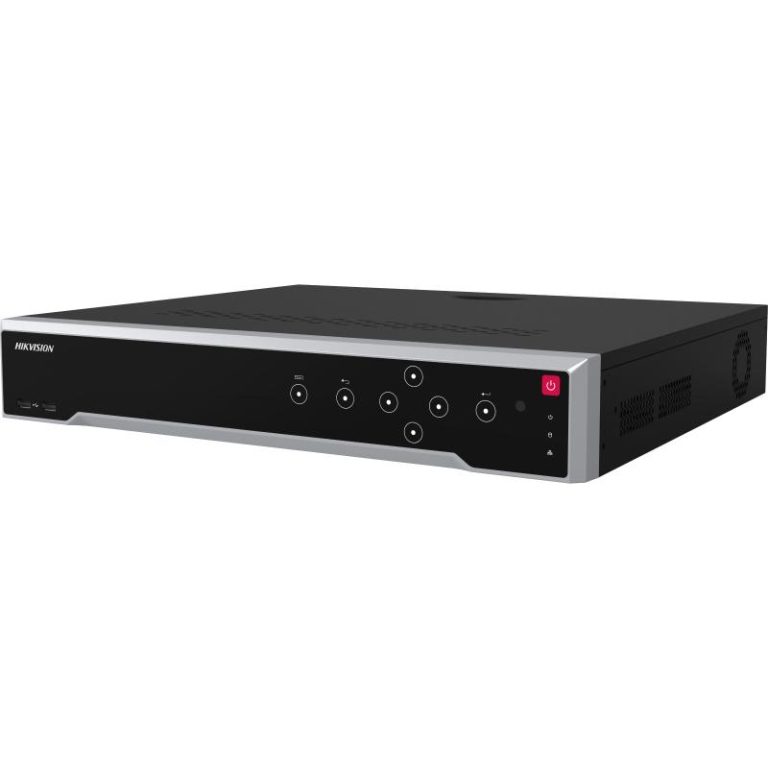

Hikvision DS-7716NI-M4/16P 16-ch PoE 1.5U AcuSense 8K NVR
Product Code
:
DS-7716NI-M4/16P
Availability
:
In Stock
Bagikan :
Deskripsi Produk
Spesifikasi Produk
Deskripsi Produk
Hikvision DS-7716NI-M4/16P 16-channels PoE AcuSense Network Video Recorder
- Input Kamera IP : Mendukung hingga 16 channel, dengan PoE (power-over-ethernet) ports
- Format Video : H.265+, H.265, H.264+, H.264
- Kapasitas Decoder : Up to 16-ch @4MP decoding capacity
- Incoming Bandwidth : Up to 256 Mbps
- Mendukung koneksi hingga 8 saluran speaker IP untuk fleksibilitas dan jangkauan audio maksimal.
- Slot Penyimpanan : 4 SATA
Spesifikasi Produk
Video and Audio
IP Video Input
16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
256 Mbps
Video Output Mode
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output
1-ch, BNC
Audio Output
1-ch, RCA
Two-way Audio
1-ch, RCA
Decoding
Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Synchronous Playback
16-ch
Stream Type
Video, Video & Audio
Network
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Camera Access Protocol
ONVIF(Version 2.5), RTSP
PoE
Interface
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 200 W
Standard
IEEE 802.3 af/at
Auxiliary Interface
eSATA
1 eSATA interface
SATA
4 SATA interfaces
Capacity
Up to 16 TB capacity for each disk
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/9
USB Interface
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply
100 to 240 VAC, 50 to 60 Hz
Consumption
≤ 15 W (without HDD and PoE off)
Dimension (W × D × H)
445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
Weight
≤ 5 kg (without HDD)
