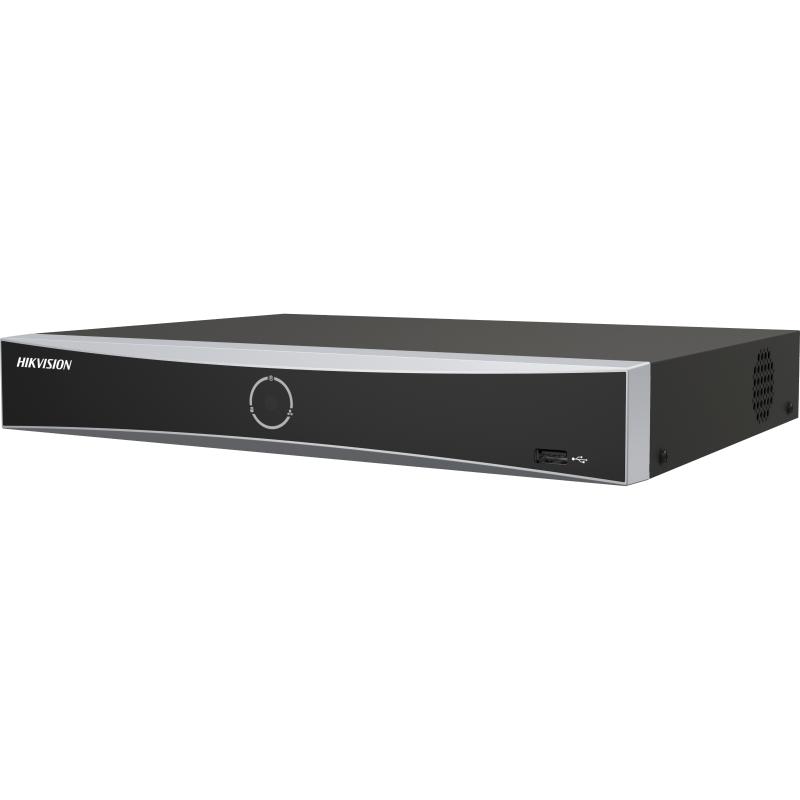

Hikvision DS-7732NXI-K4 32-ch 1.5U K Series AcuSense 4K
Product Code
:
DS-7716NXI-K4(D)-1
Availability
:
In Stock
Bagikan :
Deskripsi Produk
Spesifikasi Produk
Deskripsi Produk
DS-7732NXI-K4
32-ch 4K AcuSense Network Video Recorder
- Input Kamera IP : Mendukung hingga 32 channel
- Format Video : H.265+, H.265, H.264+, H.264
- Kapasitas Decoder : Up to 2-ch @12MP or 4-ch @8MP or 8-ch @4MP or 16-ch @1080p decoding capacity
- Incoming Bandwidth : Up to 256 Mbps
- Slot Penyimpanan : 4 SATA
Spesifikasi Produk
Intelligent Analytics
AI by Device
Facial recognition, perimeter protection, motion detection 2.0
AI by Camera
Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection and Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Video and Audio
IP Video Input
32-ch
Incoming Bandwidth
256 Mbps
Outgoing Bandwidth
160 Mbps
Video Output Mode
HDMI/VGA simultaneous input
CVBS Ouput
N/A
Audio Output
1-ch, RCA (Linear)
Two-way Audio
1-ch, RCA, using the audio input
Decoding
Decoding Format
H.265+,H.265,H.264+,H.264
Recording Resolution
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability
AI on: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps) AI off: 2-ch@12 MP (30 fps)/4-ch@8 MP (30 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps) Smooth Playback (HC) ON & AI ON: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/5-ch@4 MP (30 fps)/11-ch@1080p (30 fps) Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/7-ch@4 MP (30 fps)/15-ch@1080p (30 fps)
Auxiliary Interface
SATA
4 SATA Interface
Capacity
Up to 16 TB Capacity for each HDD
USB Interface
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in/out
16/9; 16/4
General
Power Supply
100 to 240 VAC, 50 to 60Hz
Consumption
≤ 20 W (without HDD)
Dimension (WxDxH)
445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
Weight
≤ 5 kg (without HDD, 2.2 lb.)
